Introducing the new GB Split Bearing

A revolution in design...

We are delighted to introduce our new range of split cylindrical roller bearings which offer a range of benefits and innovations across the board when compared to any other split bearings on the market.

The split bearing was invented in 1907 and its design has remained largely unchanged since then…until now! In a collaboration, we have taken the original design and updated it for the modern world, significantly extending its operating envelope. Through innovative new components the GB Split Bearing is able to offer significantly increased capacities, flexibility and simplicity of fitting & maintenance.

A fresh approach

GBsplitsUK has had the luxury of being able to partner with top end engineers and designers which has enabled us to explore the possibility of how they might improve and innovate on a bearing unit whose design has remained largely unchanged for the better part of 110 years. The end product is something that is almost inconceivably advanced compared to anything currently available.

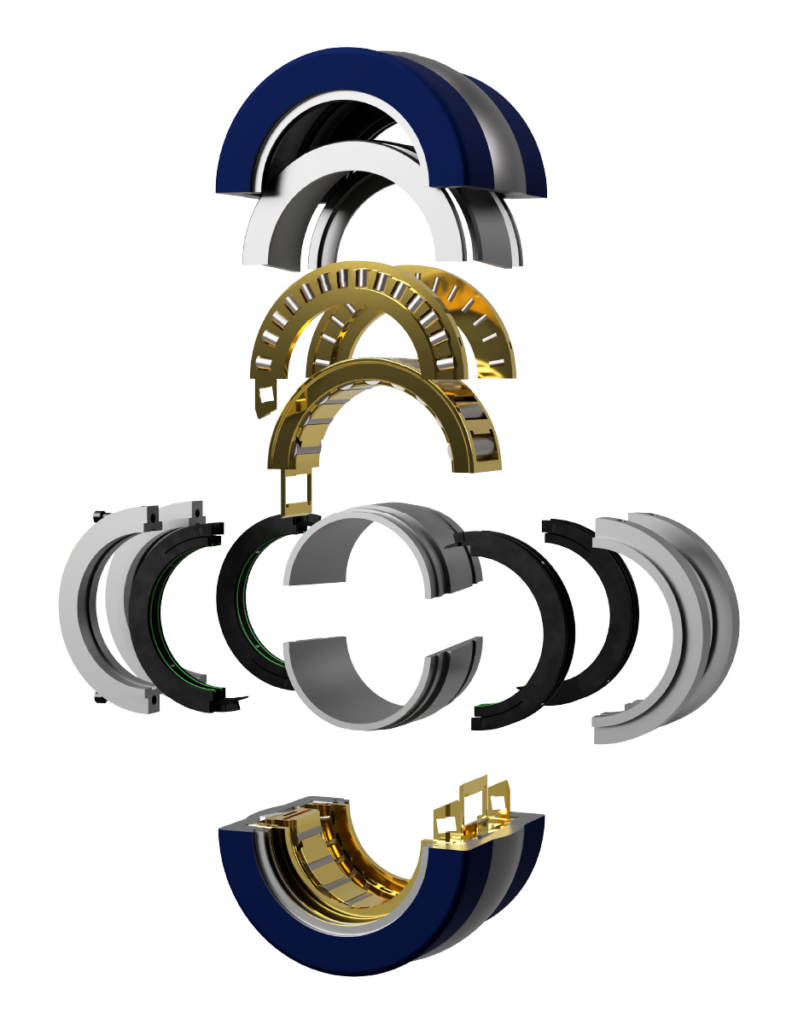

The entire split bearing has been designed around the bearing cages and the numbers are quite breathtaking; the patent-pending bearing cage, Rollertrain®, has allowed an increased radial and axial capacity of up to 70% and 1000% higher than any other split bearing in the world. The dramatic capacity increases allow our Split Bearing to replace five series of split bearings with a single series which covers almost all existing requirements.

Features

Increased radial capacity of up to 70%

Increased axial capacity of up to 1000%

Designed & manufactured in the UK

Axial and radial loads accommodated independently – allowing, for the very first time, the calculation of an axial L10 bearing life

Simplified installation and maintenance

Patented bearing cage, ROLLERTRAIN®, offers unparalleled ease of use with unique interlocking joint method

Patented triple labyrinth seals, SEALTRAIN®, manufactured from non-sparking Nylon-11 material

Patent Pending extended Triple Labyrinth Seals to accommodate worn shafts

Reversible clamping rings for increased life and durability

Available on next day delivery

Interchangeable bearing components within size group

Uniform design across entire range

Bearings
Polyamide
Nylon 11 cage
Seals

30mm to 160mm, 1.1/4“  to 6”.
Larger sizes deliveries on request.

Mining
Quarries
Oil drilling
Motors
Ferries

Size table

Item No.SizesGBSplits Part No.Timken Part No.Weight (KG)Dynamic Cr kNStatic Cor kN Dynamic Ca kN
01B103EX/GBS85mm x 51mmCB103FREELSE103BX1.480854
01B103GR/GBS85mm x 51mmCB103FIXEDLSE103BR1.480854
01B104EX/GBS85mm x 51mmCB104FREELSE104BX1.480854
01B104GR/GBS85mm x 51mmCB104FIXEDLSE104BR1.480854
01B107EX/GBS85mm x 51mmCB107FREELSE107BX1.480854
01B107GR/GBS85mm x 51mmCB107FIXEDLSE107BR1.480854
01B108EX/GBS85mm x 51mmCB108FREELSE108BX1.480854
01B108GR/GBS85mm x 51mmCB108FIXEDLSE108BR1.480854
01B30MEX/GBS85mm x 51mmCB030MFREELSM30BX1.480854
01B30MGR/GBS85mm x 51mmCB030MFIXEDLSM30BR1.480854
01B35MEX/GBS85mm x 51mmCB035MFREELSM35BX1.480854
01B35MGR/GBS85mm x 51mmCB035MFIXEDLSM35BR1.480854
01B40MEX/GBS85mm x 51mmCB040MFREELSM40BX1.480854
01B40MGR/GBS85mm x 51mmCB040MFIXEDLSM40BR1.480854
01EB111EX/GBS99mm x 56mmCB111FREELSE111BX1.71121304.6
01EB111GR/GBS99mm x 56mmCB111FIXEDLSE111BR1.71121304.6
01EB112EX/GBS99mm x 56mmCB112FREELSE112BX1.71121304.6
01EB112GR/GBS99mm x 56mmCB112FIXEDLSE112BR1.71121304.6
01EB115EX/GBS99mm x 56mmCB115FREELSE115BX1.71121304.6
01EB115GR/GBS99mm x 56mmCB115FIXEDLSE115BR1.71121304.6
01EB200EX/GBS99mm x 56mmCB200FREELSE200BX1.71121304.6
01EB200GR/GBS99mm x 56mmCB200FIXEDLSE200BR1.71121304.6
01EB45MEX/GBS99mm x 56mmCB045MFREELSM45BX1.71121304.6
01EB45MGR/GBS99mm x 56mmCB045MFIXEDLSM45BR1.71121304.6
01EB50MEX/GBS99mm x 56mmCB050MFREELSM50BX1.71121304.6
01EB50MGR/GBS99mm x 56mmCB050MFIXEDLSM50BR1.71121304.6
01EB203EX/GBS115mm x 56mmCB203FREELSE203BX2.11551898.6
01EB203GR/GBS115mm x 56mmCB203FIXEDLSE203BR2.11551898.6
01EB204EX/GBS115mm x 56mmCB204FREELSE204BX2.11551898.6
01EB204GR/GBS115mm x 56mmCB204FIXEDLSE204BR2.11551898.6
01EB207EX/GBS115mm x 56mmCB207FREELSE207BX2.11551898.6
01EB207GR/GBS115mm x 56mmCB207FIXEDLSE207BR2.11551898.6
01EB208EX/GBS115mm x 56mmCB208FREELSE208BX2.11551898.6
01EB208GR/GBS115mm x 56mmCB208FIXEDLSE208BR2.11551898.6
01EB55MEX/GBS115mm x 56mmCB055MFREELSM55BX2.11551898.6
01EB55MGR/GBS115mm x 56mmCB055MFIXEDLSM55BR2.11551898.6
01EB60MEX/GBS115mm x 56mmCB060MFREELSM60BX2.11551898.6
01EB60MGR/GBS115mm x 56mmCB060MFIXEDLSM60BR2.11551898.6
01EB65MEX/GBS115mm x 56mmCB065MFREELSM65BX2.11551898.6
01EB65MGR/GBS115mm x 56mmCB065MFIXEDLSM65BR2.11551898.6
01EB211EX/GBS134mm x 62mmCB211FREELSE211BX2.919023612.9
01EB211GR/GBS134mm x 62mmCB211FIXEDLSE211BR2.919023612.9
01EB212EX/GBS134mm x 62mmCB212FREELSE212BX2.919023612.9
01EB212GR/GBS134mm x 62mmCB212FIXEDLSE212BR2.919023612.9
01EB215EX/GBS134mm x 62mmCB215FREELSE215BX2.919023612.9
01EB215GR/GBS134mm x 62mmCB215FIXEDLSE215BR2.919023612.9
01EB300EX/GBS134mm x 62mmCB300FREELSE300BX2.919023612.9
01EB300GR/GBS134mm x 62mmCB300FIXEDLSE300BR2.919023612.9
01EB70MEX/GBS134mm x 62mmCB070MFREELSM70BX2.919023612.9
01EB70MGR/GBS134mm x 62mmCB070MFIXEDLSM70BR2.919023612.9
01EB75MEX/GBS134mm x 62mmCB075MFREELSM75BX2.919023612.9
01EB75MGR/GBS134mm x 62mmCB075MFIXEDLSM75BR2.919023612.9
01EB303EX/GBS153mm x 71mmCB303FREELSE303BX4.624231414.3
01EB303GR/GBS153mm x 71mmCB303FIXEDLSE303BR4.624231414.3
01EB304EX/GBS153mm x 71mmCB304FREELSE304BX4.624231414.3
01EB304GR/GBS153mm x 71mmCB304FIXEDLSE304BR4.624231414.3
01EB307EX/GBS153mm x 71mmCB307FREELSE307BX4.624231414.3
01EB307GR/GBS153mm x 71mmCB307FIXEDLSE307BR4.624231414.3
01EB308EX/GBS153mm x 71mmCB308FREELSE308BX4.624231414.3
01EB308GR/GBS153mm x 71mmCB308FIXEDLSE308BR4.624231414.3
01EB80MEX/GBS153mm x 71mmCB080MFREELSM80BX4.624231414.3
01EB80MGR/GBS153mm x 71mmCB080MFIXEDLSM80BR4.624231414.3
01EB85MEX/GBS153mm x 71mmCB085MFREELSM85BX4.624231414.3
01EB85MGR/GBS153mm x 71mmCB085MFIXEDLSM85BR4.624231414.3
01EB90MEX/GBS153mm x 71mmCB090MFREELSM90BX4.624231414.3
01EB90MGR/GBS153mm x 71mmCB090MFIXEDLSM90BR4.624231414.3
01EB311EX/GBS175mm x 81mmCB311FREELSE311BX6.932843820.6
01EB311GR/GBS175mm x 81mmCB311FIXEDLSE311BR6.932843820.6
01EB312EX/GBS175mm x 81mmCB312FREELSE312BX6.932843820.6
01EB312GR/GBS175mm x 81mmCB312FIXEDLSE312BR6.932843820.6
01EB315EX/GBS175mm x 81mmCB315FREELSE315BX6.932843820.6
01EB315GR/GBS175mm x 81mmCB315FIXEDLSE315BR6.932843820.6
01EB400EX/GBS175mm x 81mmCB400FREELSE400BX6.932843820.6
01EB400GR/GBS175mm x 81mmCB400FIXEDLSE400BR6.932843820.6
01EB95MEX/GBS175mm x 81mmCB095MFREELSM95BX6.932843820.6
01EB95MGR/GBS175mm x 81mmCB095MFIXEDLSM95BR6.932843820.6
01EB100MEX/GBS175mm x 81mmCB100MFREELSM100BX6.932843820.6
01EB100MGR/GBS175mm x 81mmCB100MFIXEDLSM100BR6.932843820.6
01EB105MEX/GBS175mm x 81mmCB105MFREELSM105BX6.932843820.6
01EB105MGR/GBS175mm x 81mmCB105MFIXEDLSM105BR6.932843820.6
01B403EX/GBS203mm x 85mmCB403FREELSE403BX11.735850321.9
01B403GR/GBS203mm x 85mmCB403FIXEDLSE403BR11.735850321.9
01B404EX/GBS203mm x 85mmCB404FREELSE404BX11.735850321.9
01B404GR/GBS203mm x 85mmCB404FIXEDLSE404BR11.735850321.9
01B407EX/GBS203mm x 85mmCB407FREELSE407BX11.735850321.9
01B407GR/GBS203mm x 85mmCB407FIXEDLSE407BR11.735850321.9
01B408EX/GBS203mm x 85mmCB408FREELSE408BX11.735850321.9
01B408GR/GBS203mm x 85mmCB408FIXEDLSE408BR11.735850321.9
01B110MEX/GBS203mm x 85mmCB110MFREELSM110BX11.735850321.9
01B110MGR/GBS203mm x 85mmCB110MFIXEDLSM110BR11.735850321.9
01B115MEX/GBS203mm x 85mmCB115MFREELSM115BX11.735850321.9
01B115MGR/GBS203mm x 85mmCB115MFIXEDLSM115BR11.735850321.9
